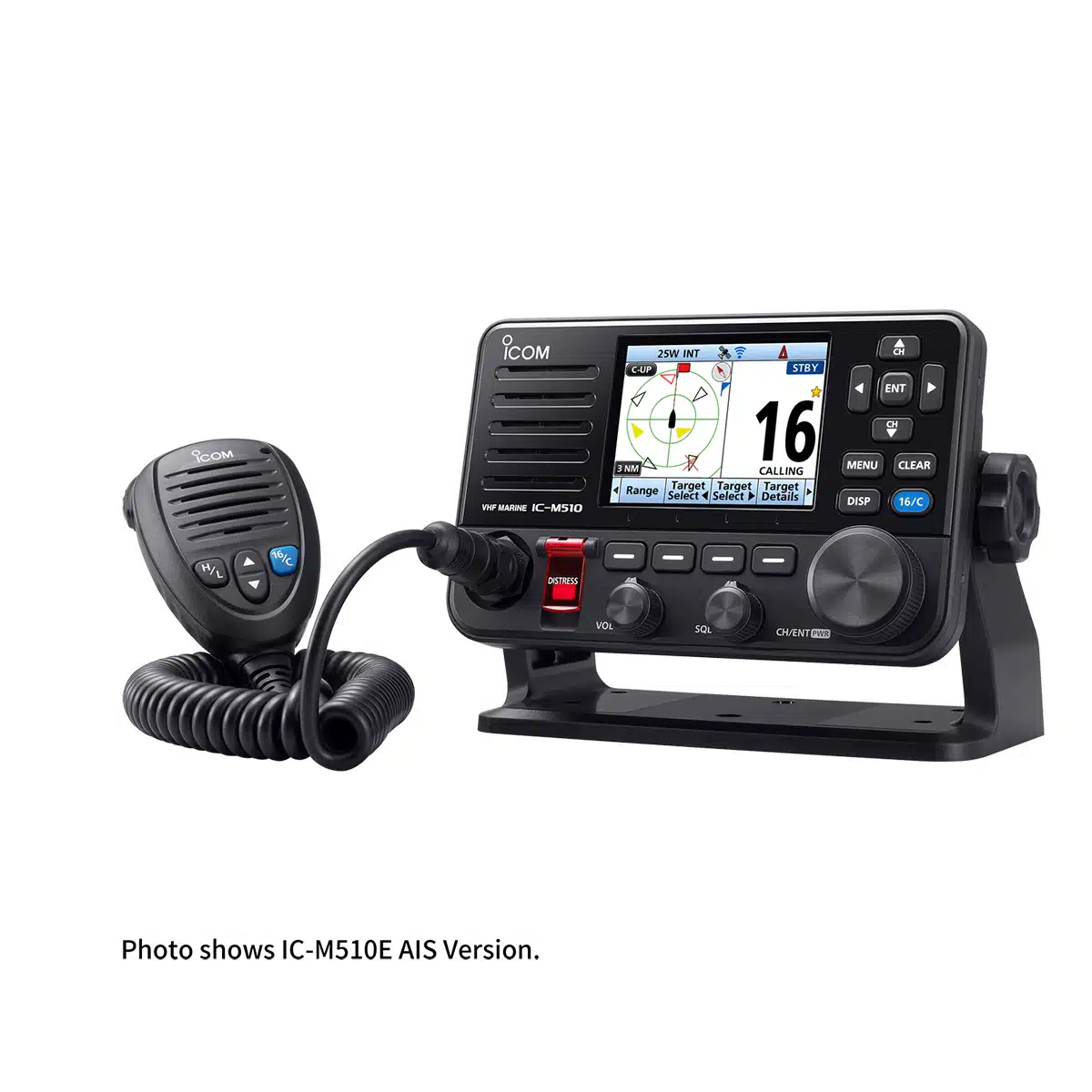

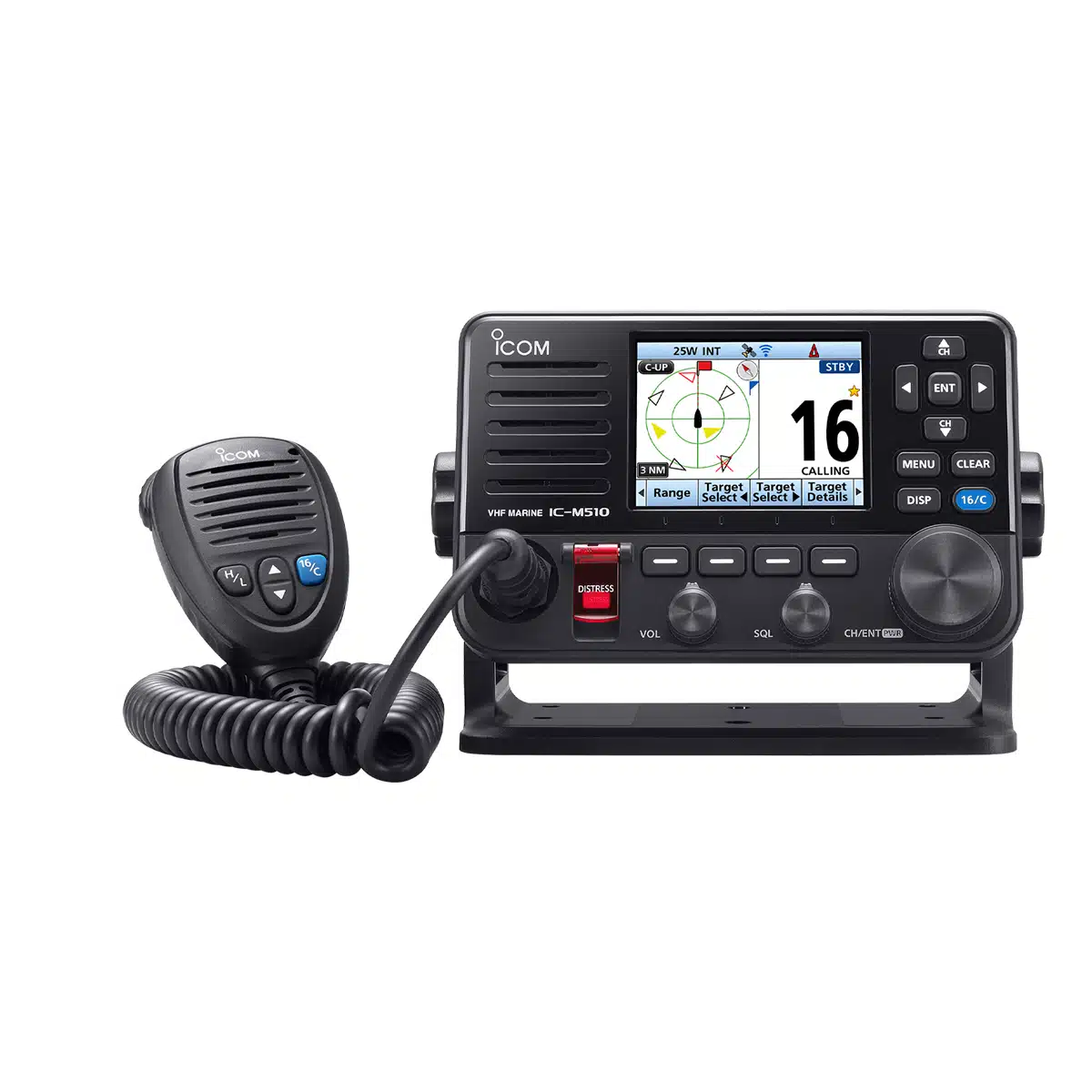

FIXED MOUNT MARINE TRANSCEIVER ICOM IC-M510E

Description

FIXED MOUNT MARINE TRANSCEIVER ICOM IC-M510E

class D DSC fixed-mount marine transceiver from ICOM with WLAN function.
Radio control & intercom via your smart device.
New sleek design, easy to install in your boat.
Two versions – without and with AIS receiver.

Integra-A Ltd. Has been successful on the Bulgarian market since 1993.

The company is a distributor of two-way radios communications equipment and accessories – hand-held, mobile and base two-way radios, digital and analog radios; marine and air-band radios, license-free radios, amateur radios, receivers, cables, power-supply units, antennas, microphones, mounts; specialist police equipment.

Additional information

SPECIFICATIONS

– Frequency range: Tx 156.025-161.425 MHz; Rx 156.300-161.925 MHz
– Number of channels: International VHF marine channels
– Output power: 1/25W
– Operating temperature range: -20 to +60 C
– Color TFT display with wide viewing angle – 180°
– IP68
– MIL-STD 810 C/D/E/F/G
– DSC class D
– AquaQuake™ draining function
– Active noise cancelling
– Encryption – optional (UT-112A)
– Wireless LAN
– AIS target call function (when connected to optional MA-510TR class B AIS transponder)
– NMEA 0183/HS connectivity
– Optional interface box CT-M500 for hailer and NMEA 2000™ connectivity
– Integrated GNSS receiver
– Dimensions (H x W x D): 110/91 x 175/156 x 15+38.6+17.6 = 71.2 mm

SUPPLIED WITH

– Hand microphone HM-205RB
– DC power cable
– Mounting bracket kit
