Compact 2.4 GHz full-duplex participant/listener intercom with up to 150 m range and PTT capability for two-way conversation with the guide.
Expected delivery: 25-10-2026

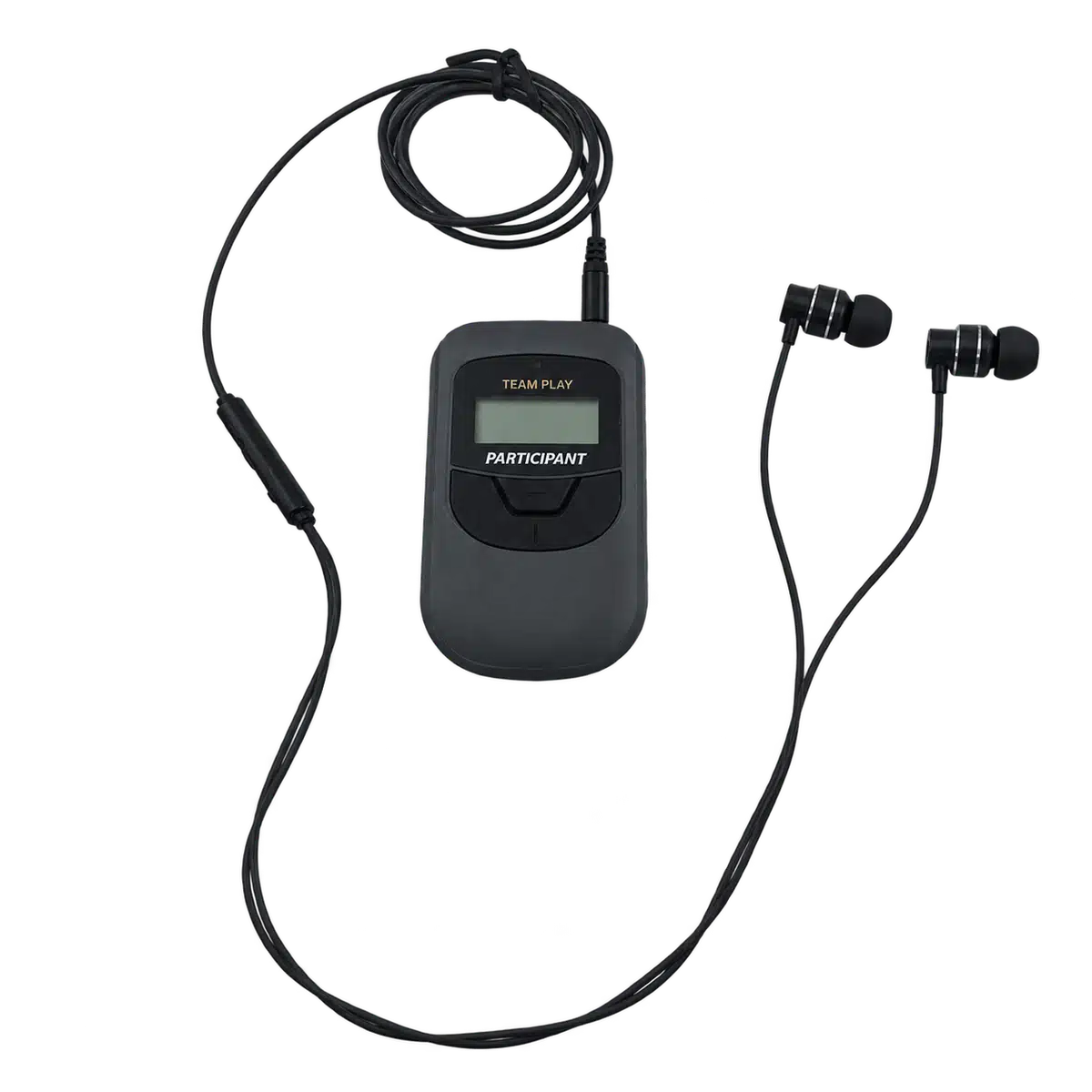

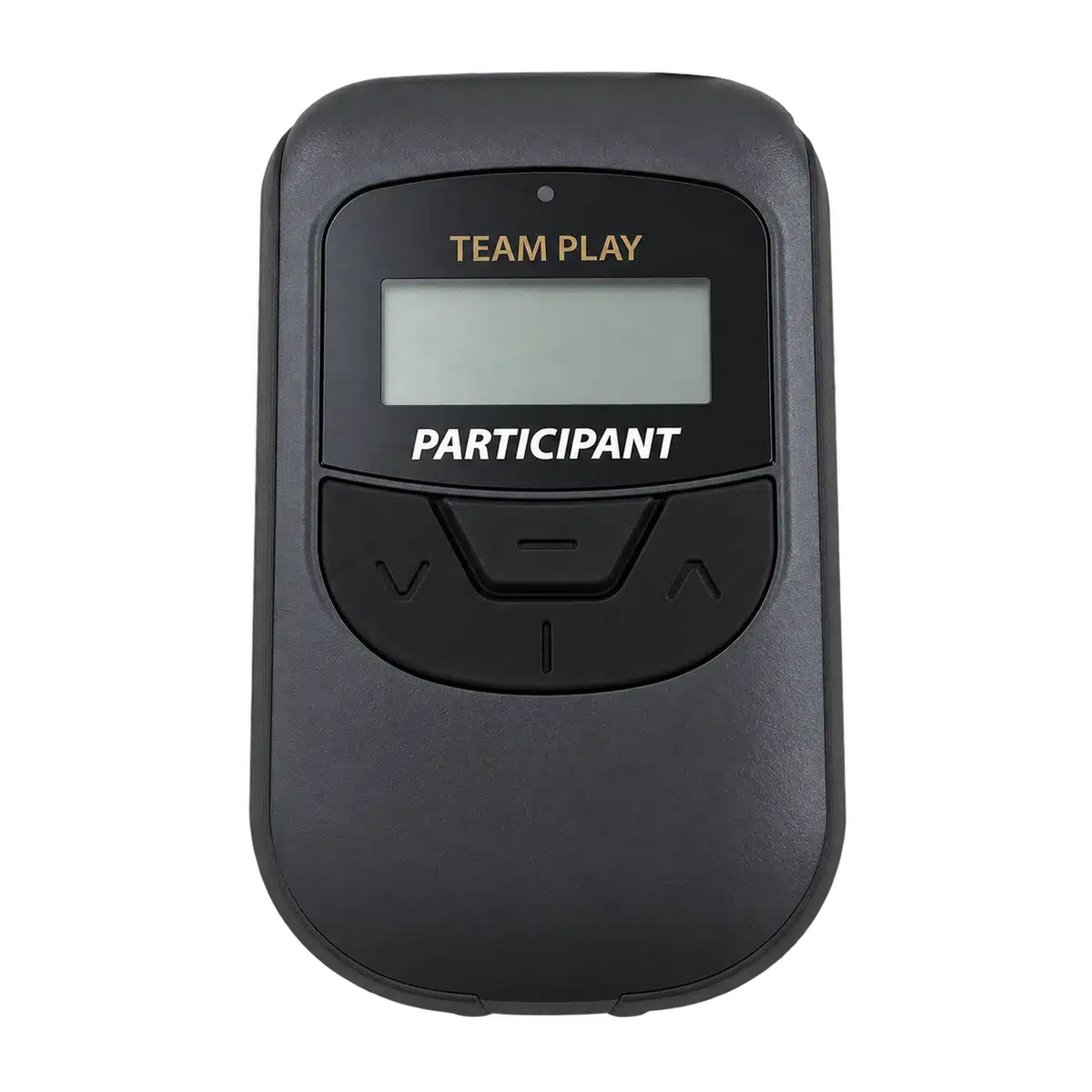

The ESCOLTA BRAVO HE-P is the participant intercom in the BRAVO HE system. It allows the user to listen to the guide and, when required, join a full-duplex conversation with the leader while the rest of the group continues listening.
The HE-P operates in the 2.4 GHz ISM band and uses digital frequency-hopping communication. A participant can activate transmission using PTT, while the compact housing and low weight make the unit comfortable to carry during tours, training sessions, conferences, industrial visits and other group activities.
The company is a distributor of radio-communication equipment and accessories – hand-held, mobile and base radios, digital and analog systems, marine and air-band radios, license-free radios, receivers, cables, power supplies, antennas, microphones, mounts and specialist equipment.
| Portability | |
|---|---|
| Manufacturer | |
| Type of user |
– Operating frequency range: ISM 2403–2480 MHz
– Communication type: full duplex
– Modulation: GFSK with frequency hopping
– Voice codec: 16 kHz / 16 bit
– Maximum transmitter output power: 10 mW
– Receiver sensitivity: -95 dBm
– Voice latency: below 20 ms
– Number of frequency channels: 80
– Channel spacing: 500 kHz
– Data rate: 500 kbps
– Frequency bandwidth: 500 kHz
– Frequency response: 50 Hz – 8 kHz
– Antenna: internal
– Battery: Li-Ion 3.7 V, 800 mAh
– Typical operating time: approximately 10 hours; manufacturer feature information states over 12 hours depending on conditions
– Range: up to 150 m line of sight
– Maximum simultaneous transmitters: 2
– Dimensions: 50 x 88 x 15 mm
– Weight: 60 g
– HE-L specific feature: Line In input for an external audio source
– ESCOLTA BRAVO HE-P intercom
– Earphones
– USB charging cable
– Neck strap
– User manual
Optional: plug-in microphone for HE-P.
