Wideband base communications receiver covering 10 kHz–3 GHz, with analog and digital modes, 4.3-inch color touchscreen, real-time spectrum scope with waterfall display, and 2000 memory channels.
Expected delivery: 04-10-2026
The Icom IC-R8600 is a high-performance wideband communications receiver covering 10 kHz to 3 GHz. It receives conventional analog modes including USB, LSB, CW, FSK, AM, FM and WFM, as well as a range of digital protocols including D-STAR, P25 Phase 1, NXDN, dPMR and DCR.
The large 4.3-inch color touchscreen provides fast access to operating functions, while the built-in real-time spectrum scope with waterfall display makes it easier to find and monitor signals. The receiver provides up to 2000 regular memory channels, multiple scanning modes and received-audio recording to an SD card.
The IC-R8600 can be remotely controlled over an IP network or USB using the optional RS-R8600 software. A digital I/Q output is also available for signal analysis and decoding with compatible third-party software.
The company is a distributor of radio-communication equipment and accessories – hand-held, mobile and base radios, digital and analog systems, marine and air-band radios, license-free radios, receivers, cables, power supplies, antennas, microphones, mounts and specialist equipment.
| Portability | BASE |
|---|---|
| Manufacturer | ICOM |
| Type of user | AMATEUR |
– Frequency coverage (EUR): 0.010000–3000.000000 MHz
– Frequency resolution: 1 Hz
– Modes: USB, LSB, CW, FSK, AM, FM, WFM; digital D-STAR, P25 Phase 1, NXDN, dPMR, DCR
– Regular memory channels: 2000 in 100 groups
– Additional memories: 200 Auto Memory Write, 100 Skip and 100 Scan Edge
– Scan types: Programmed, Memory, Selected Memory, Selected Mode, Auto Memory Write, Priority and Δf Scan
– Memory-scan speed: up to approximately 100 channels/second
– Display: 4.3-inch color touchscreen
– Spectrum scope: real-time, up to approximately 30 frames/second; maximum displayed span ±2.5 MHz
– Waterfall function
– Frequency stability: less than ±0.5 ppm at 25°C after warm-up
– Power supply: 13.8 V DC ±15%
– Current drain: 1.8 A stand-by; up to 2.0 A at maximum audio
– Operating temperature: -10°C to +60°C

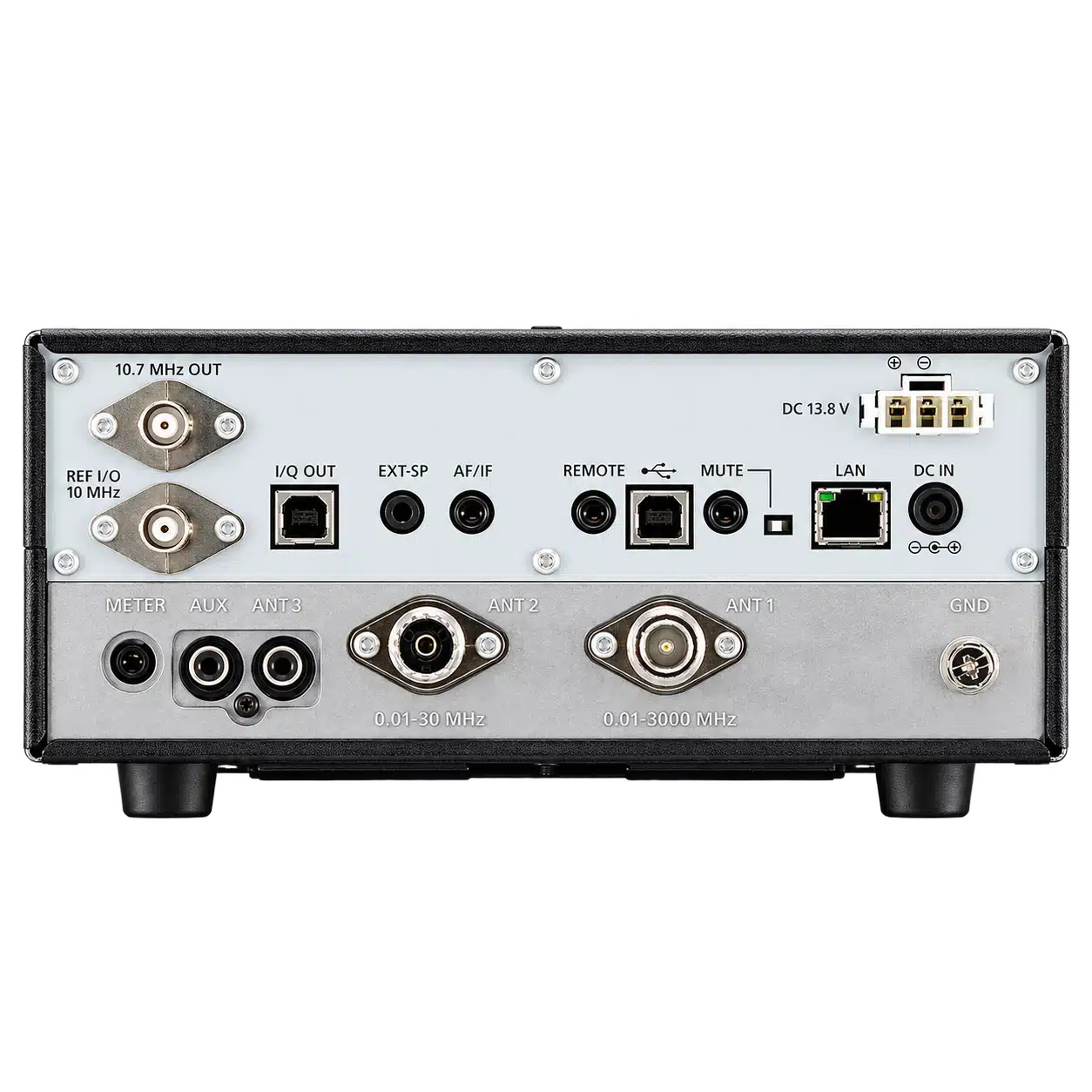

– Antenna connectors: ANT 1 Type-N 50 Ω (0.01–3000 MHz); ANT 2 SO-239/PL-259 50 Ω (0.01–30 MHz); ANT 3 RCA 500 Ω (0.01–30 MHz)
– Audio output power: more than 2.0 W into 8 Ω at 10% distortion
– Recording: WAVE audio to SD card; PNG/BMP screen capture
– Remote control: IP network or USB with optional RS-R8600
– Digital I/Q output via USB
– Dimensions (W x H x D): 220 x 90 x 230 mm, projections not included
– Weight: approximately 4.3 kg
– DC power cable
– Fuses
– Plugs/connectors (depending on receiver version)
