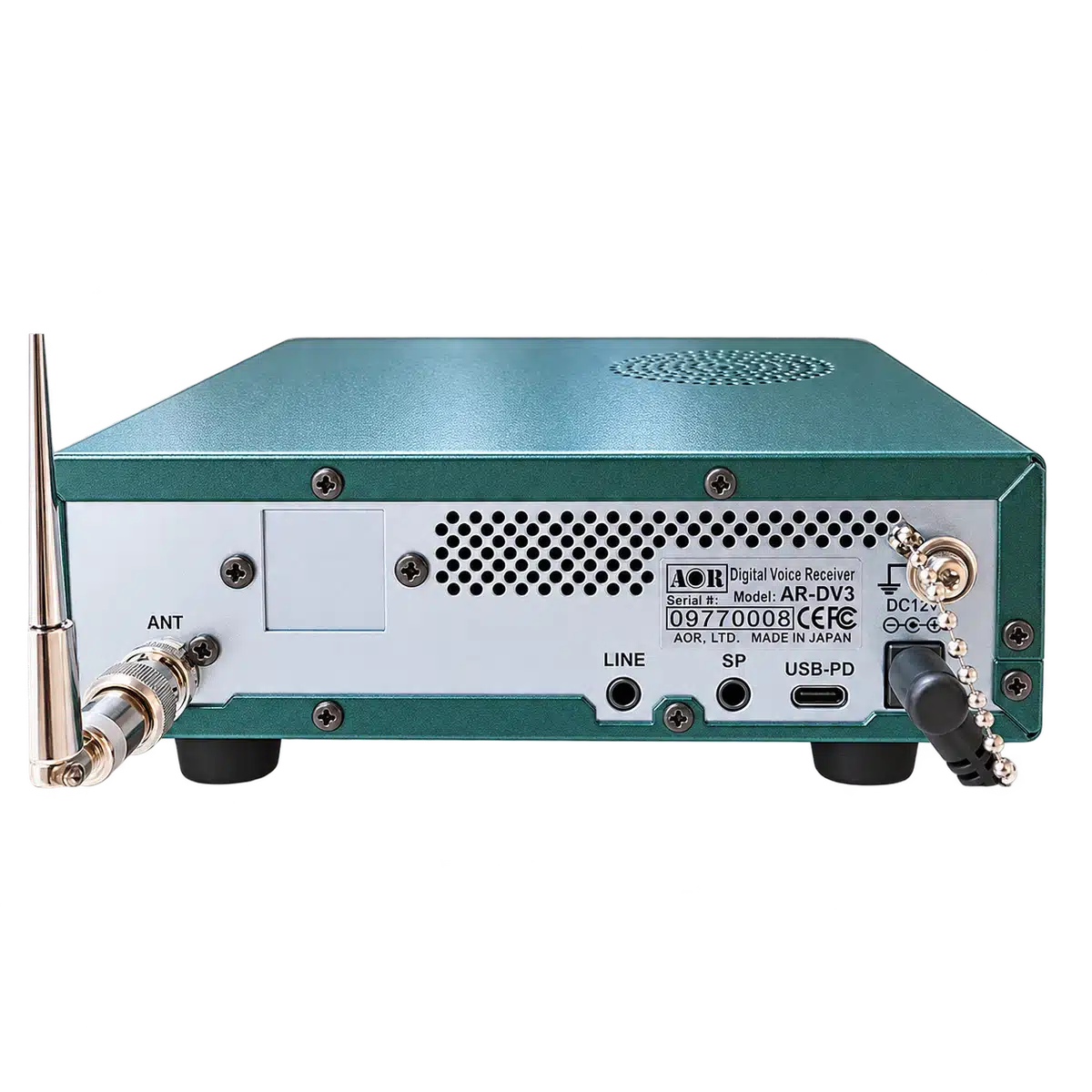

FIXED DIGITAL AND ANALOGUE RECEIVER AOR AR-DV3

Description

FIXED DIGITAL AND ANALOGUE RECEIVER AOR AR-DV3

AOR AR-DV3 is a new-generation fixed wideband receiver for analogue and digital radio signals. Its 100 kHz to 3000 MHz coverage spans longwave, mediumwave, shortwave, VHF/UHF and much of the spectrum up to 3 GHz.

The receiver decodes TETRA, DMR, NXDN, APCO P25 Phase 1, dPMR, D-STAR, YAESU C4FM, ALINCO and D-CR, while analogue modes include FM, WFM, AM, synchronous AM, SSB and CW. Cyber Search reaches up to 600 steps per second, and USB audio provides a direct digital connection to a computer.

Main advantages

• 100 kHz–3000 MHz wideband coverage
• analogue and multiple digital modes in one receiver
• Cyber Search up to 600 steps/sec
• 2000 memory channels and 40 banks
• USB audio, SDHC recording and USB-PD power
• optional digital I/Q output and 10.7 MHz IF output

Integra-A Ltd. has been successful on the Bulgarian market since 1993.

The company imports, installs and supports radio-communication and internal company-security systems. Integra-A is a distributor of radio-communication equipment and accessories.

Additional information

SPECIFICATIONS

– Official name: AR-DV3 Digital Voice Receiver
– Frequency coverage: 100 kHz–3000 MHz; minimum tuning step 10 Hz
– Digital modes: TETRA, DMR Tier 1/2, NXDN, P25 Phase 1, dPMR446 Tier 1, D-STAR DV, YAESU C4FM, ALINCO EJ-47U, D-CR
– Analogue modes: FM, WFM, AM, synchronous AM, USB, LSB, CW
– Architecture: direct sampling 100 kHz–18 MHz; double superheterodyne 18–3000 MHz
– Memory: 2000 channels, 40 banks; 3 VFOs (A/B/Z)
– Cyber Search: up to 600 steps/sec
– Audio output: 1.5 W into 8 Ω
– Power: 12 V DC (10.7–16 V) or USB-PD 15 V / 30 W+
– Dimensions: 178 x 50 x 180 mm
– Weight: approximately 1.5 kg
– Operating temperature: 0°C to +50°C
– Options: TETRA GSSI activation, COSPAS-SARSAT decoder, 10.7 MHz IF module, digital I/Q module

SUPPLIED WITH

– User manual
– Important: the international model does not include an AC power supply or telescopic antenna; both are sold separately
