Premium reference desktop microphone with dynamic and electret-condenser elements, independent nine-band graphic equalisers, record/playback, headphone monitoring and electronic PTT lock.
Expected delivery: 04-10-2026

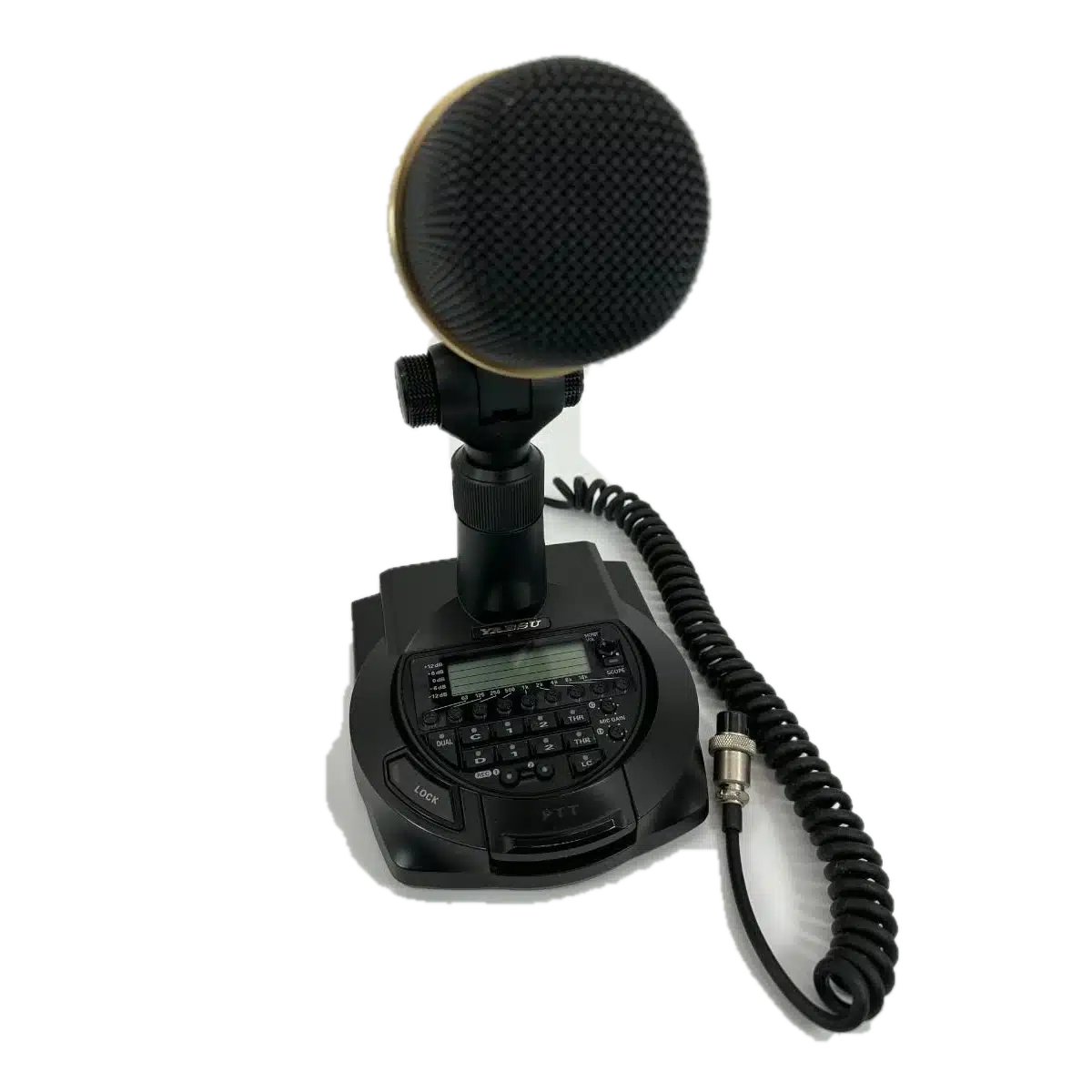

YAESU M-1 is a reference desktop microphone for amateur HF transceivers, designed for precise shaping of transmitted voice audio. It combines dynamic and electret-condenser microphone elements that can be used separately or together.

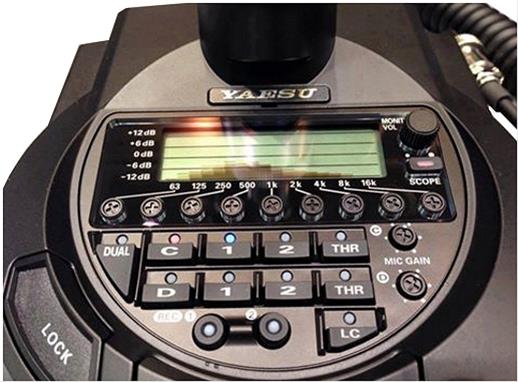

Each element has its own nine-band graphic equaliser. The M-1 also provides record/playback for checking audio character, a headphone output, electronic PTT lock and a large display for audio adjustment.
The company imports, installs and supports radio-communication and internal company-security systems. Integra-A is a distributor of radio-communication equipment and accessories.
– Official name: M-1 Reference Microphone
– Microphone elements: dynamic and electret condenser
– Supply voltage: 5.0 V DC ±5%
– Current consumption: 160 mA ±30 mA typical
– Frequency range: 30–17,000 Hz
– Sensitivity: -60 dB at 1 kHz, 0 dB = 1 V/Pa
– Microphone impedance: 600 Ω
– Headphone output: 16 Ω typical, 15 mW typical
– Dimensions: 140 x 280 x 152 mm
– Weight: approximately 960 g
– AC adapter
– microphone cable
– Treble Boost Cowling
