Compact 13-element receive-only discone antenna with continuous 70–1500 MHz coverage, 50 Ω impedance, approximately 2 dBi typical gain and a supplied 15 m coaxial cable.
Expected delivery: 04-10-2026

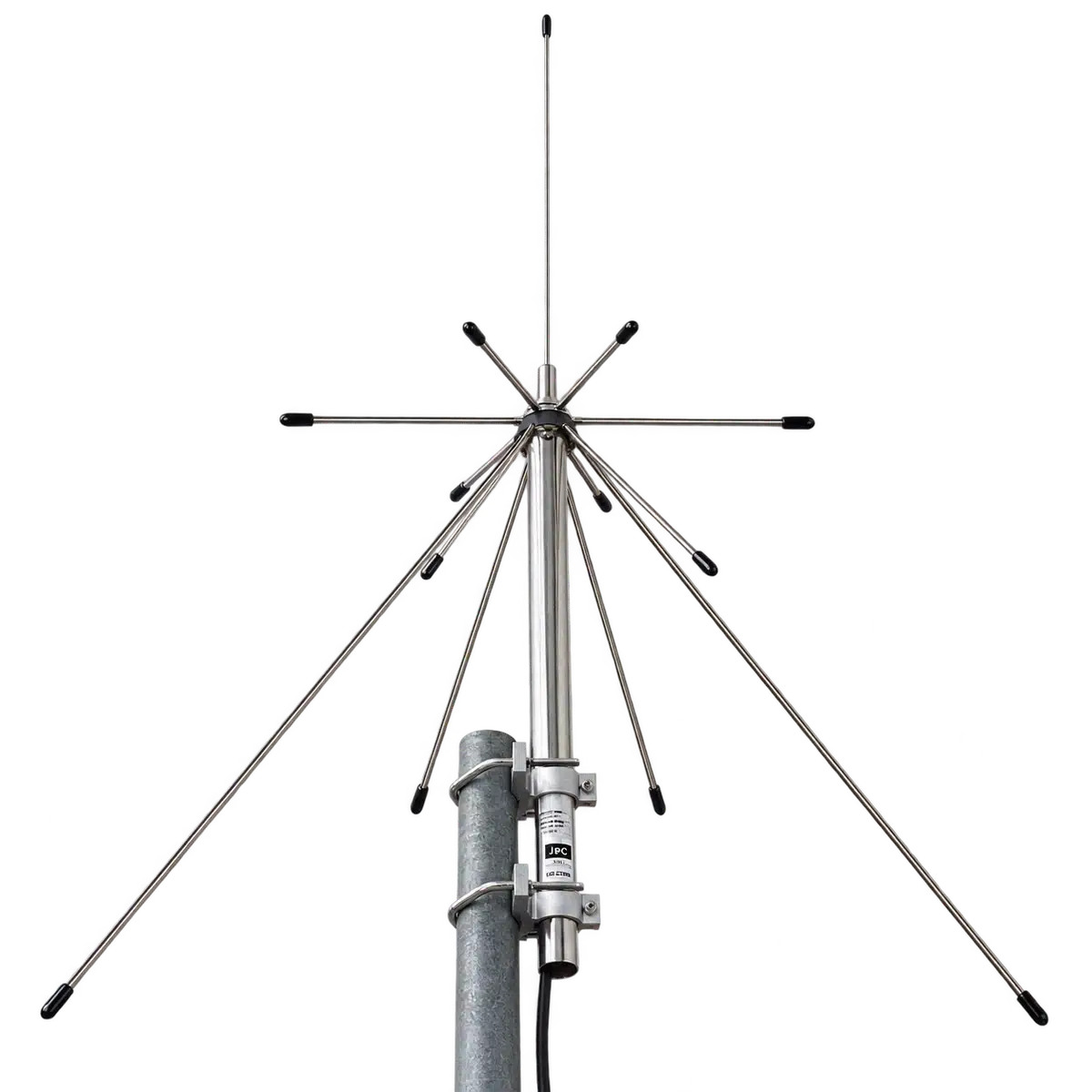

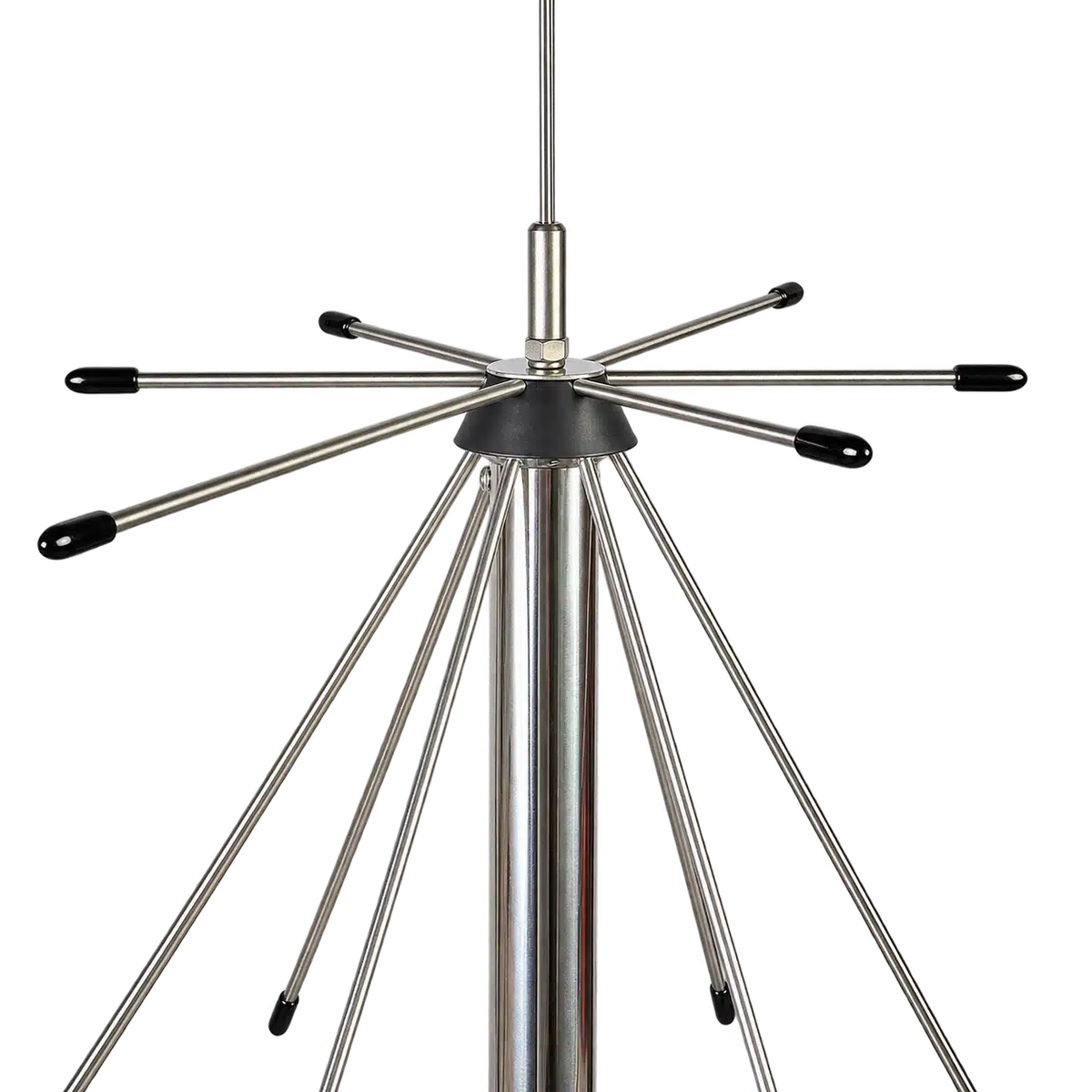

AOR DA1500 is a compact wideband discone antenna for reception from 70 to 1500 MHz. Its 13-element omnidirectional design suits wideband receivers and scanners where installation space is limited.

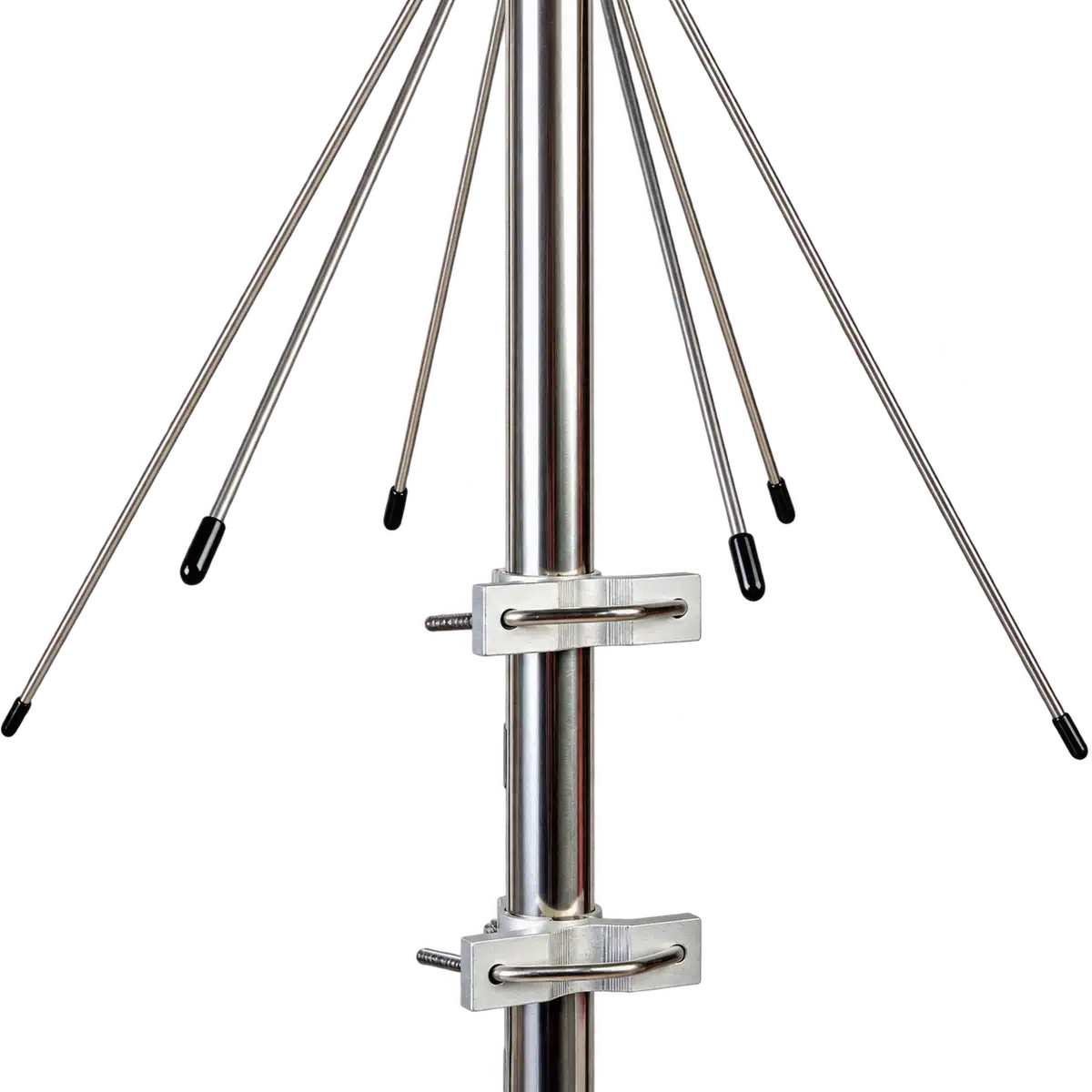

The antenna is approximately 92 cm high and mounts on a 25–50 mm mast. It is supplied with 15 m of RG-58A/U coaxial cable and a BNCJ-to-NP adaptor for convenient connection to different receiver installations.
The company imports, installs and supports radio-communication and internal company-security systems. Integra-A is a distributor of radio-communication equipment and accessories.
| Weight | 0,6 kg |
|---|---|
| Portability | |
| Manufacturer |
– Official name: DA1500 Discone Antenna for Wideband Reception
– Frequency range: 70–1500 MHz
– Use: receive only
– Pattern: omnidirectional
– Typical gain: 2 dBi, excluding cable loss
– Impedance: 50 Ω
– Antenna connector: M-J
– Dimensions: 92 cm high; approximately 53 cm diameter
– Weight: approximately 600 g, antenna body and support pipe
– Rated wind velocity: 50 m/s
– Supported mast diameter: 25–50 mm
– 15 m RG-58A/U coaxial cable with MP–BNCP connectors
– BNCJ–NP adaptor
– mounting V-bolts
