Professional 16-element receive-only discone antenna with continuous 25–3000 MHz coverage, up to 3 dBi gain, N connector and a supplied 15 m low-loss 5D-2V coaxial cable.
Expected delivery: 04-10-2026

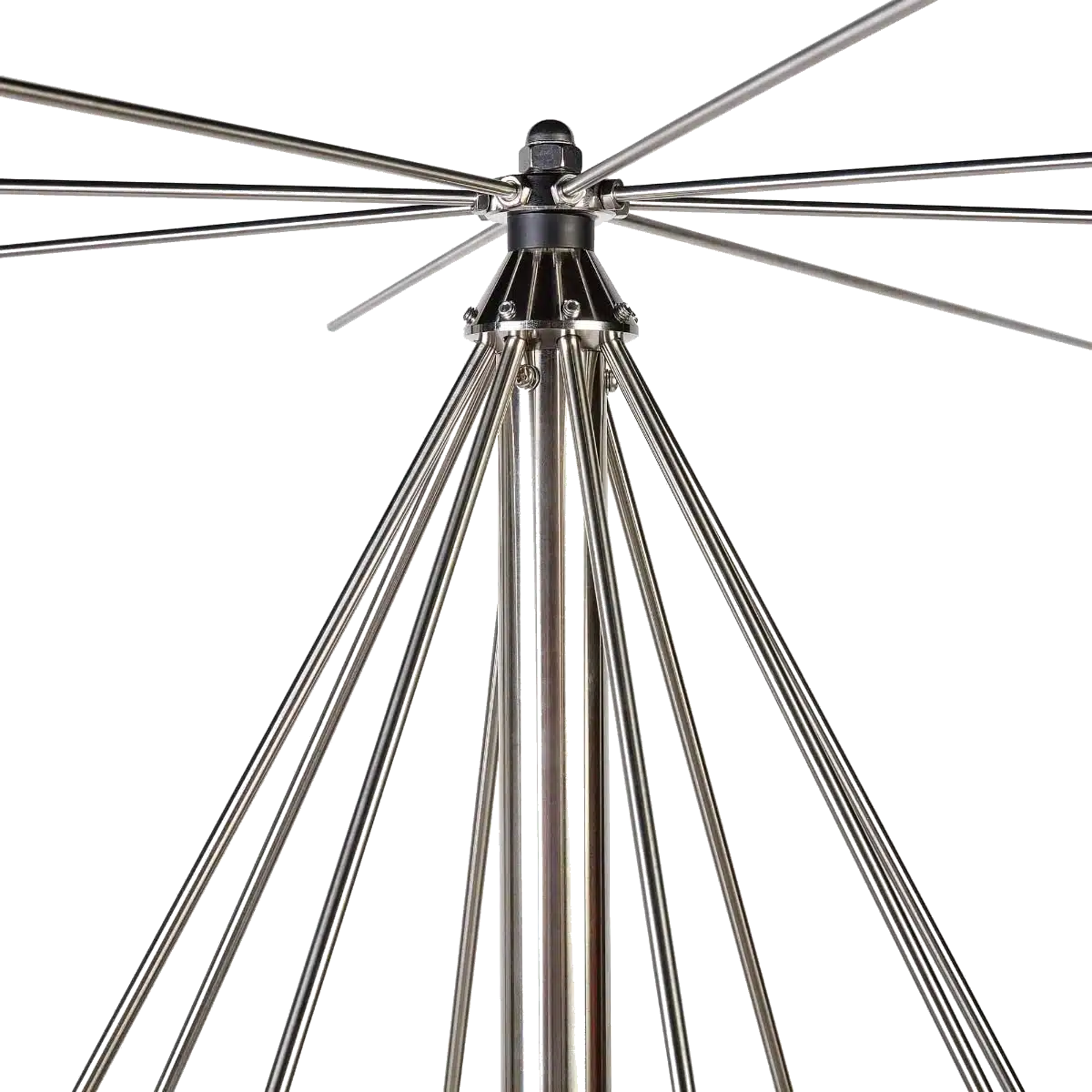

AOR DA3200 is a rugged ultra-wideband discone antenna for professional surveillance, monitoring and scanning applications. It provides continuous receive coverage from 25 MHz to 3000 MHz.
The antenna uses a 16-element discone structure designed for fixed outdoor installation and is supplied with 15 m of low-loss 5D-2V coaxial cable.
The company imports, installs and supports radio-communication and internal company-security systems. Integra-A is a distributor of radio-communication equipment and accessories.
| Weight | 1 kg |
|---|---|
| Portability | |
| Manufacturer |
– Official name: DA3200 Ultra Wideband Discone Antenna
– Frequency range: 25–3000 MHz
– Use: receive only
– Impedance: 50 Ω
– Maximum gain: 3 dBi from 100–3000 MHz
– Connector: N socket / N-J
– Dimensions: approximately 1.12 m high; 0.84 m diameter
– Weight: approximately 1 kg, cable excluded
– Rated wind velocity: 50 m/s
– Accepted mast diameter: 25–50 mm
– 15 m low-loss 5D-2V coaxial cable with N connectors
– mounting hardware
