Compact passive twin-element outdoor receiving antenna covering 30 kHz–2 GHz, with a long element for HF and a shorter loaded element for VHF/UHF, 50 Ω impedance and a supplied 15 m coaxial cable.
Expected delivery: 04-10-2026
AOR SA7000 is a passive wideband antenna for listening and monitoring applications from 30 kHz to 2 GHz. It uses two separate whip elements: a longer element for shortwave frequencies up to about 30 MHz and a shorter loaded whip for VHF/UHF.

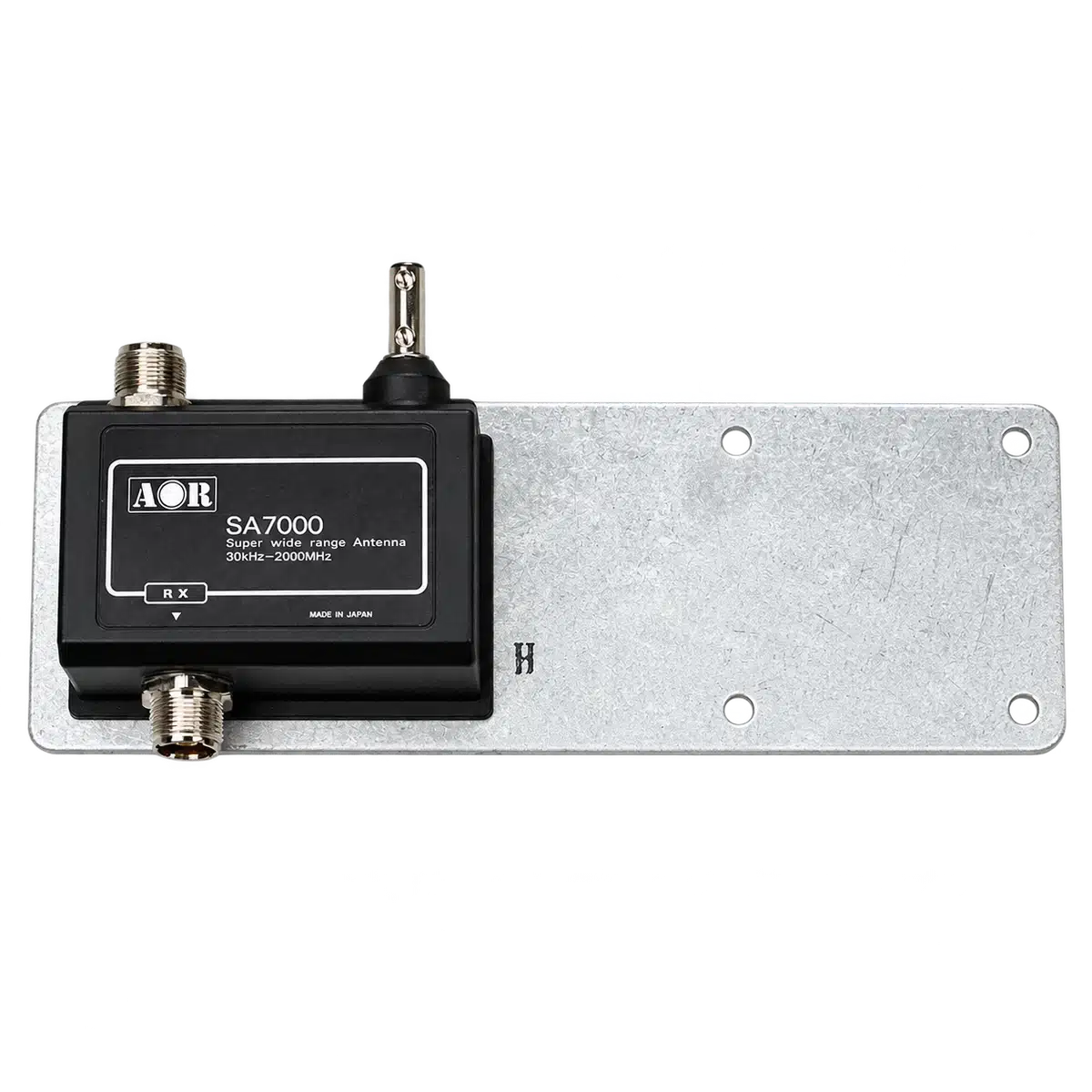

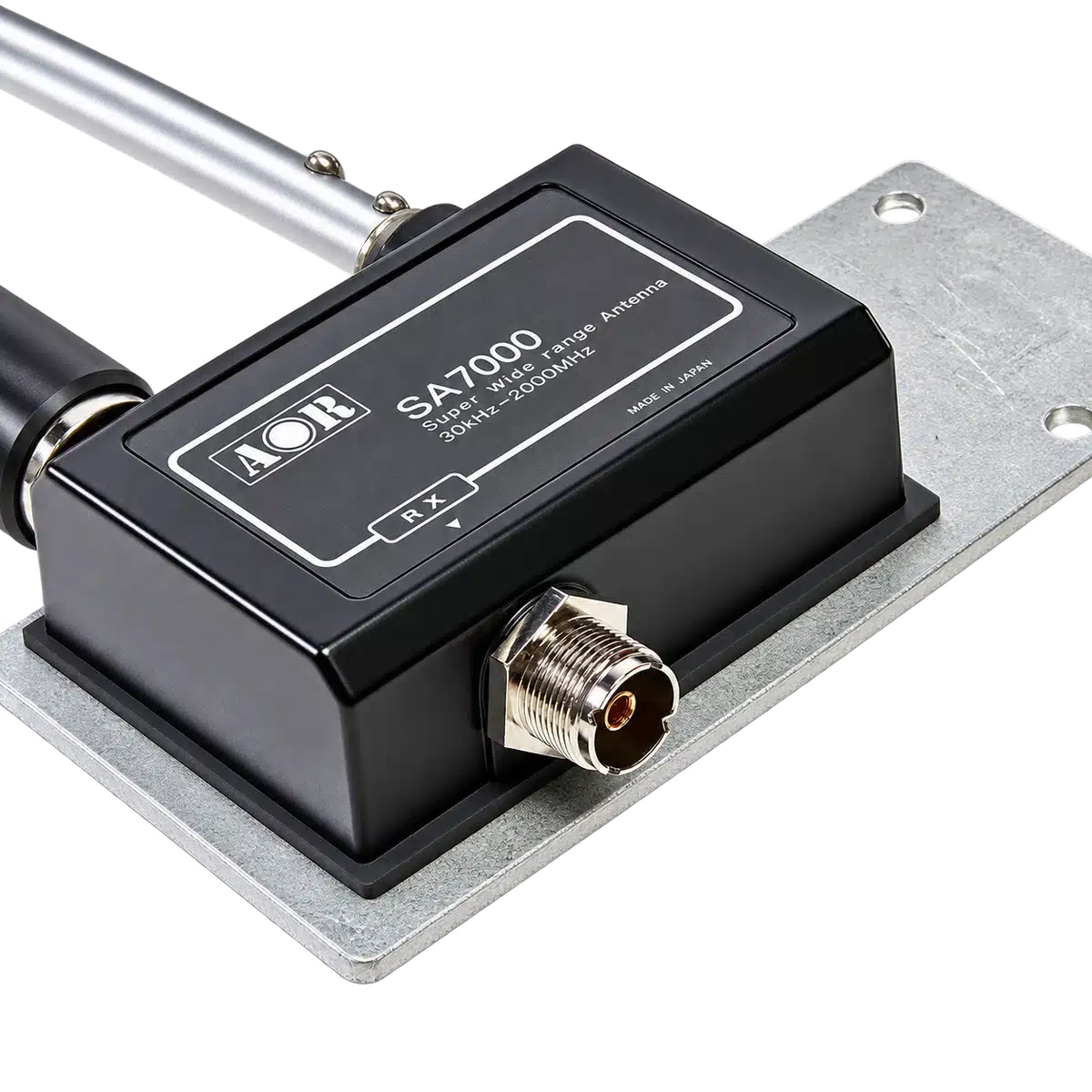

The two elements combine into a common weatherproof enclosure and share a single coaxial feed. Overall height is approximately 1.8 m, making the antenna relatively unobtrusive for a fixed outdoor installation.
The company imports, installs and supports radio-communication and internal company-security systems. Integra-A is a distributor of radio-communication equipment and accessories.
| Portability | |
|---|---|
| Manufacturer |
– Official name: SA7000 Twin Element
– Frequency range: 30 kHz–2 GHz
– Use: receive only
– Construction: two passive whip elements
– Impedance: 50 Ω
– Overall height: approximately 1.80 m
– Wind endurance: 50 m/s
– Supported mast diameter: 30–60 mm
– Coaxial cable: 15 m RG-58/U with BNC connector
– Power source: none required
– 15 m RG-58/U coaxial cable with BNC connector
– V-bolts and mounting clamps
– instruction sheet
