Three-band RF triplexer with a common N-female port and three 35 cm coaxial leads: 1.6–160 MHz (PL-259), 350–550 MHz (N-male), and 850–1300 MHz (N-male). 50 Ω impedance and VSWR below 1.2.
Expected delivery: 20-10-2026
The KOMUNICA MX-1300-PWR-C is a passive RF triplexer designed to combine or separate signals in three distinct frequency ranges through a common antenna port. It enables a compact multiband antenna installation with dedicated connections for low-, mid-, and high-frequency bands.

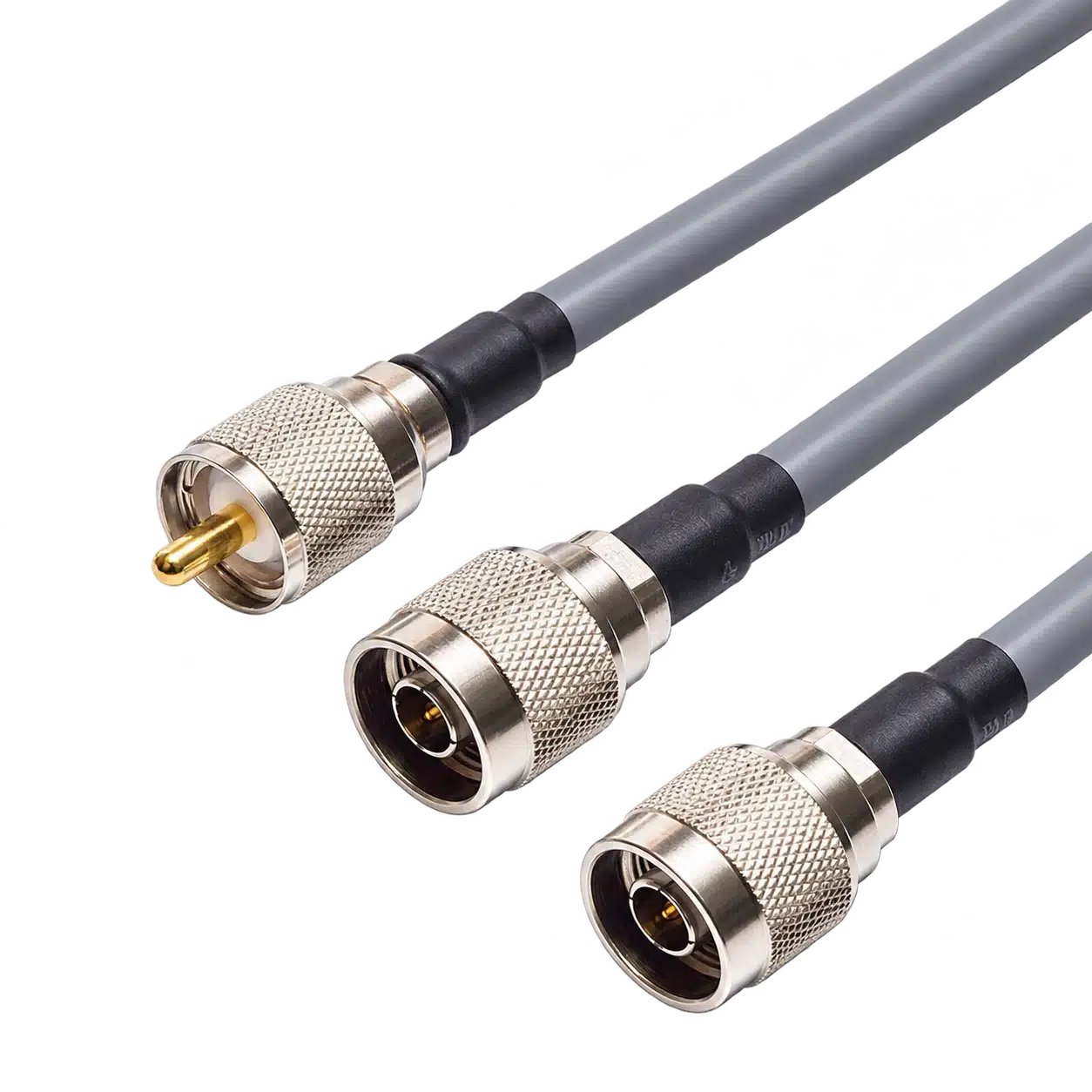

The common port uses an N-female connector. The triplexer has three pre-attached 5D-2VS coaxial leads, each 35 cm long: one PL-259 for 1.6–160 MHz and two N-male connectors for 350–550 MHz and 850–1300 MHz respectively. Nominal impedance is 50 Ω, with VSWR below 1.2.
The company imports, installs and supports radio-communication and internal company-security systems. Integra-A is a distributor of radio-communication equipment and accessories.
| Weight | 0,39 kg |
|---|---|
| Manufacturer | KOMUNICA |
| Type of user | AMATEUR |
– Type: passive three-band RF triplexer
– Common antenna connector: N-female
– Band 1: 1.6–160 MHz; PL-259; up to 800 W PEP; 0.20 dB insertion loss
– Band 2: 350–550 MHz; N-male; up to 500 W PEP; 0.30 dB insertion loss
– Band 3: 850–1300 MHz; N-male; up to 200 W PEP; 0.40 dB insertion loss
– Impedance: 50 Ω
– VSWR: <1.2
– Coaxial cables: 5D-2VS, three 35 cm leads
– Housing dimensions: 86 × 27 × 65 mm
– Weight: 390 g
– EAN: 8435757704079
