Wideband 1:1 antenna balun covering 0.5–60 MHz, with 50 Ω impedance and power handling up to 2000 W PEP. For wire and dipole antennas, with PL (SO-239) female connector.
Expected delivery: 20-10-2026

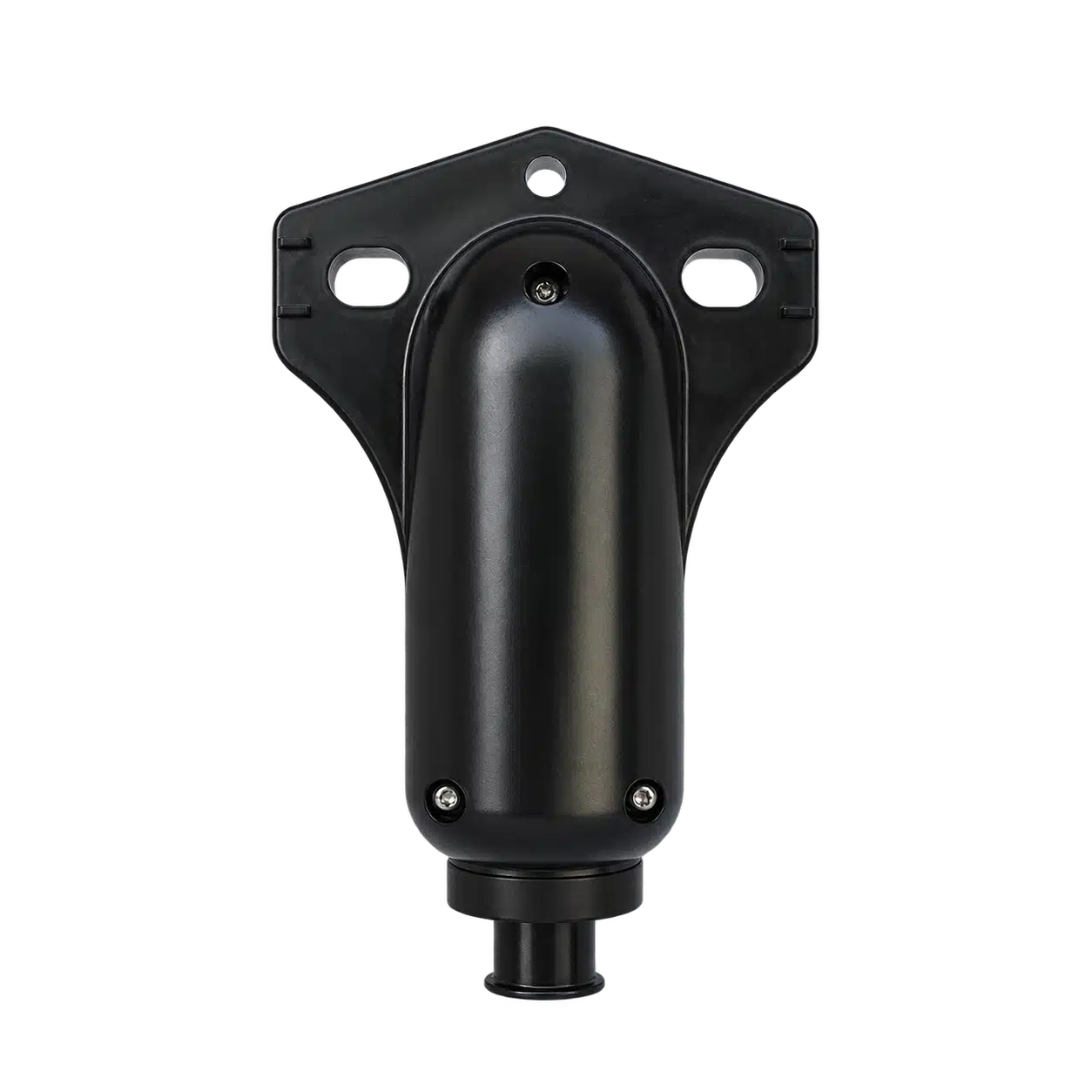

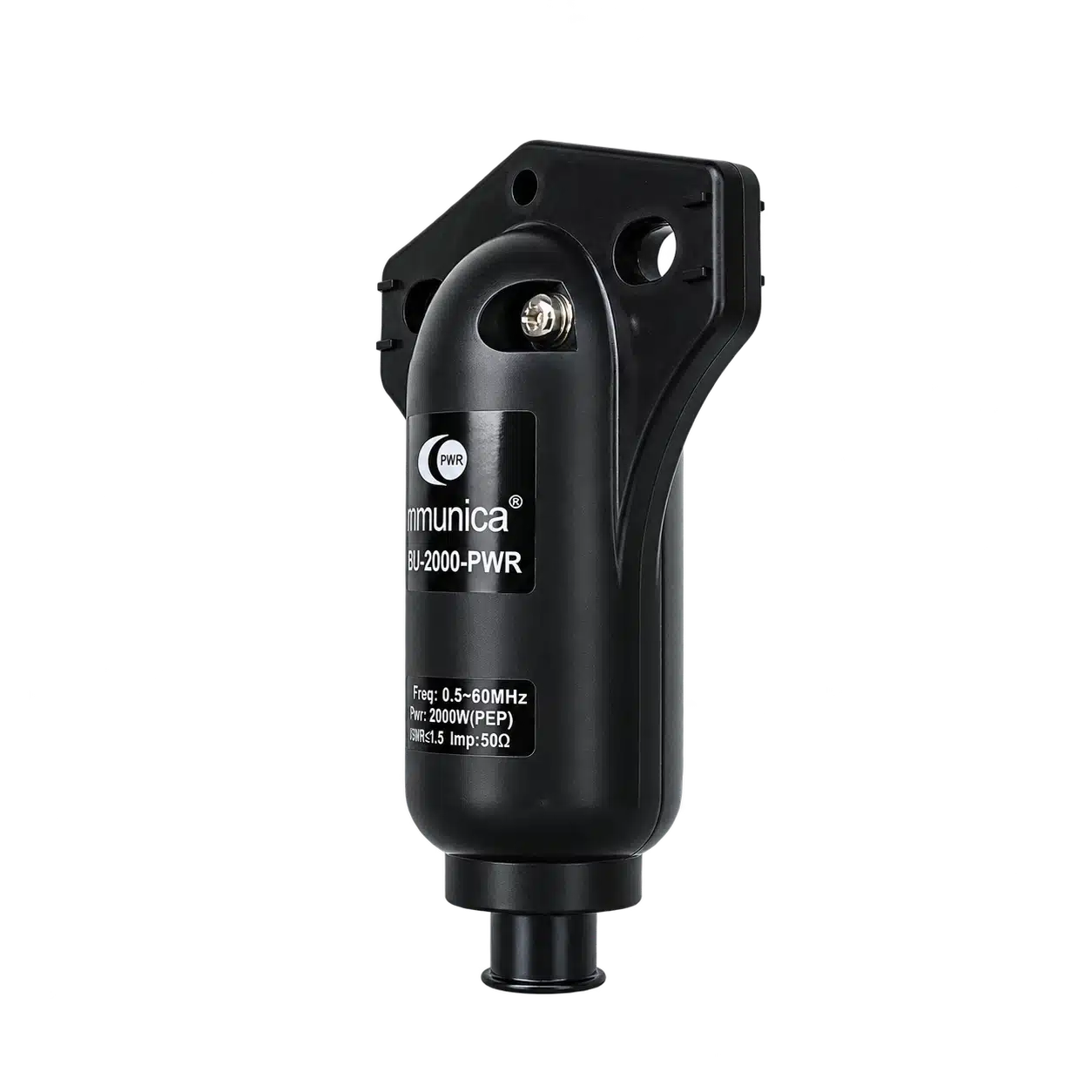

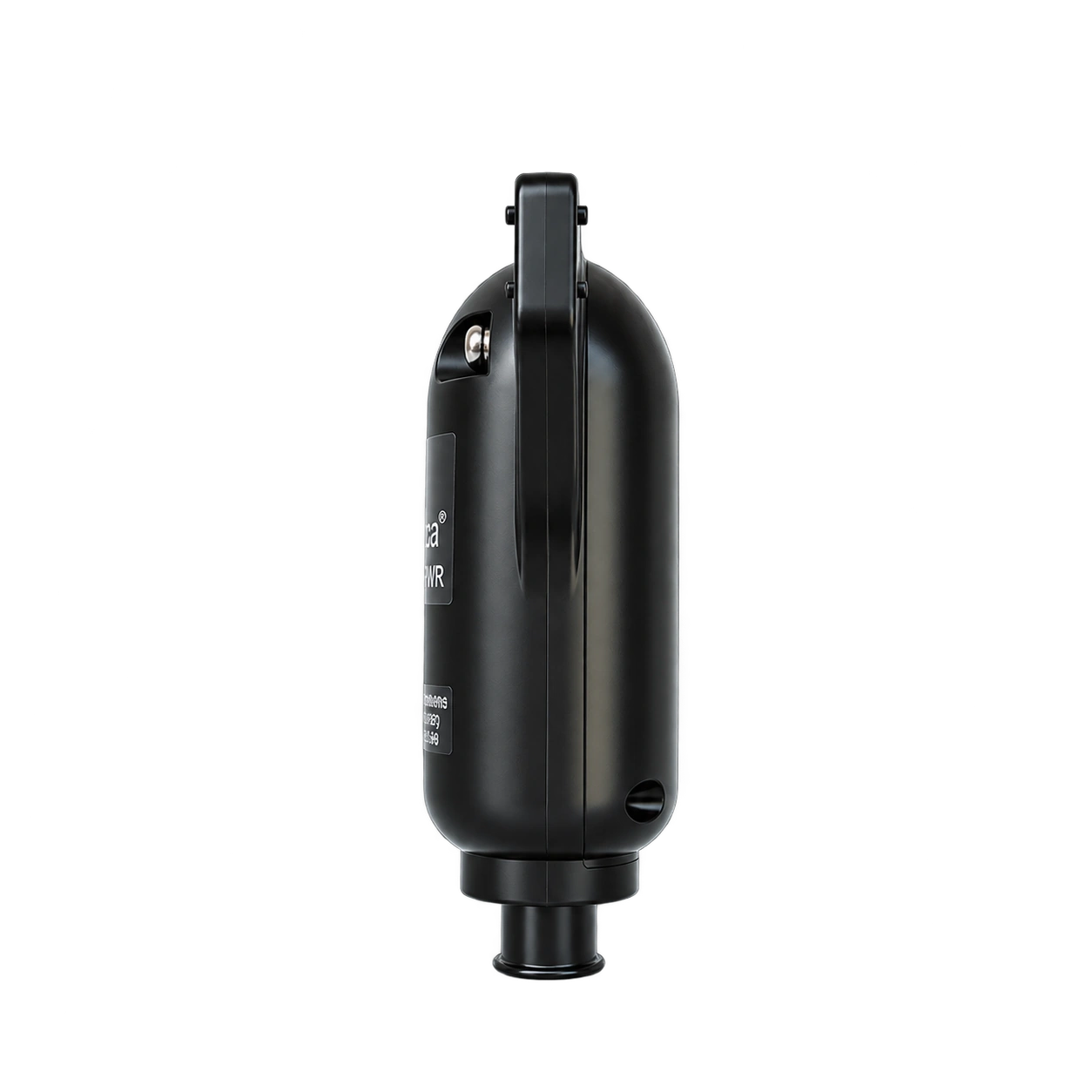

The KOMUNICA BU-2000-PWR is a wideband 1:1 antenna balun designed for feeding wire and dipole antennas. Covering 0.5–60 MHz, it provides the interface between a balanced antenna and an unbalanced coaxial feed line.
The unit is rated for 50 Ω nominal impedance and up to 2000 W PEP. Its housing includes a mounting flange for attaching the balun to the antenna assembly and an SO-239 (PL-female) coaxial connector.
The company imports, installs and supports radio-communication and internal company-security systems. Integra-A is a distributor of radio-communication equipment and accessories.
| Weight | 0,2 kg |
|---|---|
| Manufacturer | KOMUNICA |
| Type of user | AMATEUR |
– Type: wideband antenna balun
– Transformation ratio: 1:1
– Frequency range: 0.5–60 MHz
– Nominal impedance: 50 Ω
– Maximum peak power: 2000 W PEP

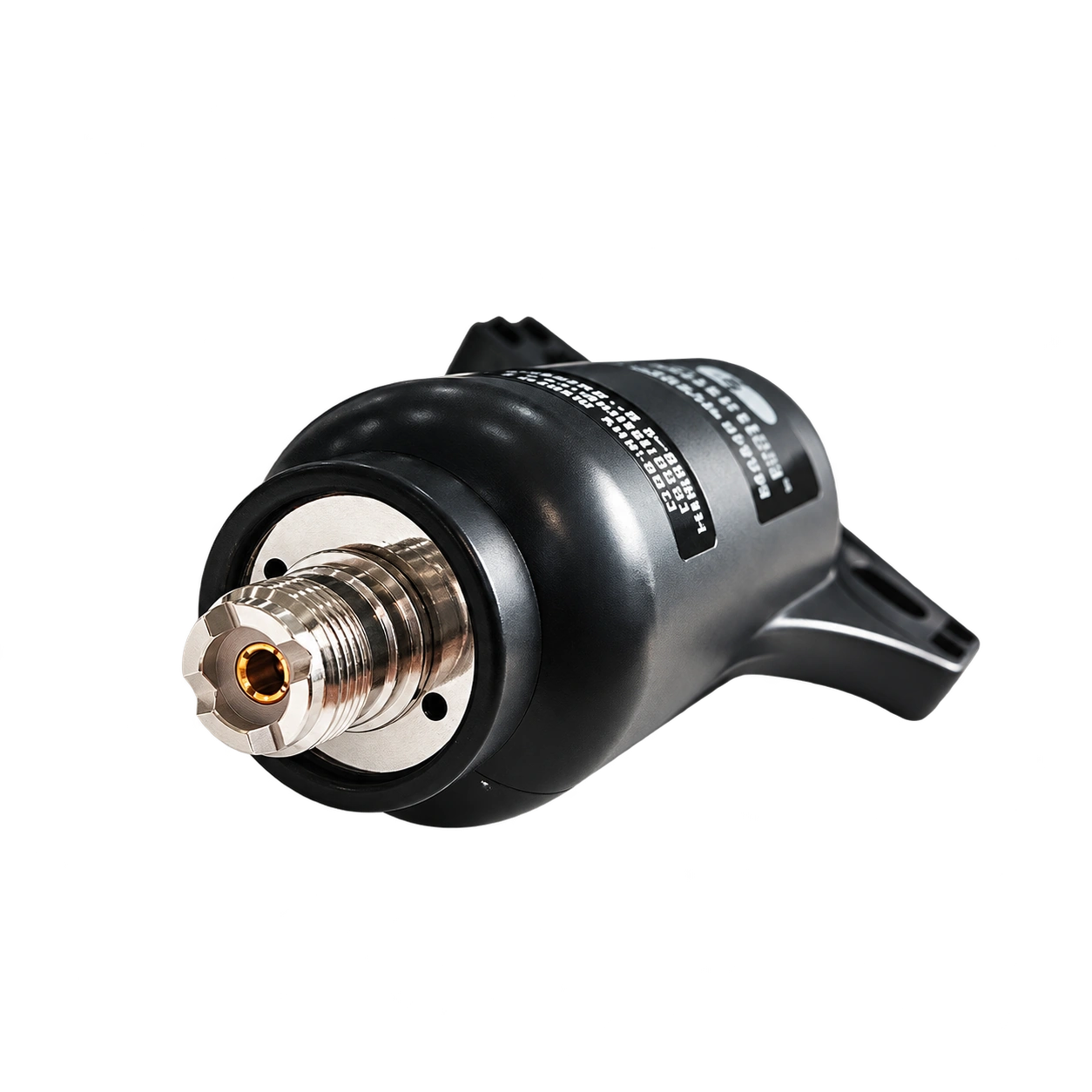

– Coaxial connector: SO-239 / PL-female
– Construction: housing with mounting flange
– Weight: 200 g
– EAN: 8435757701405
