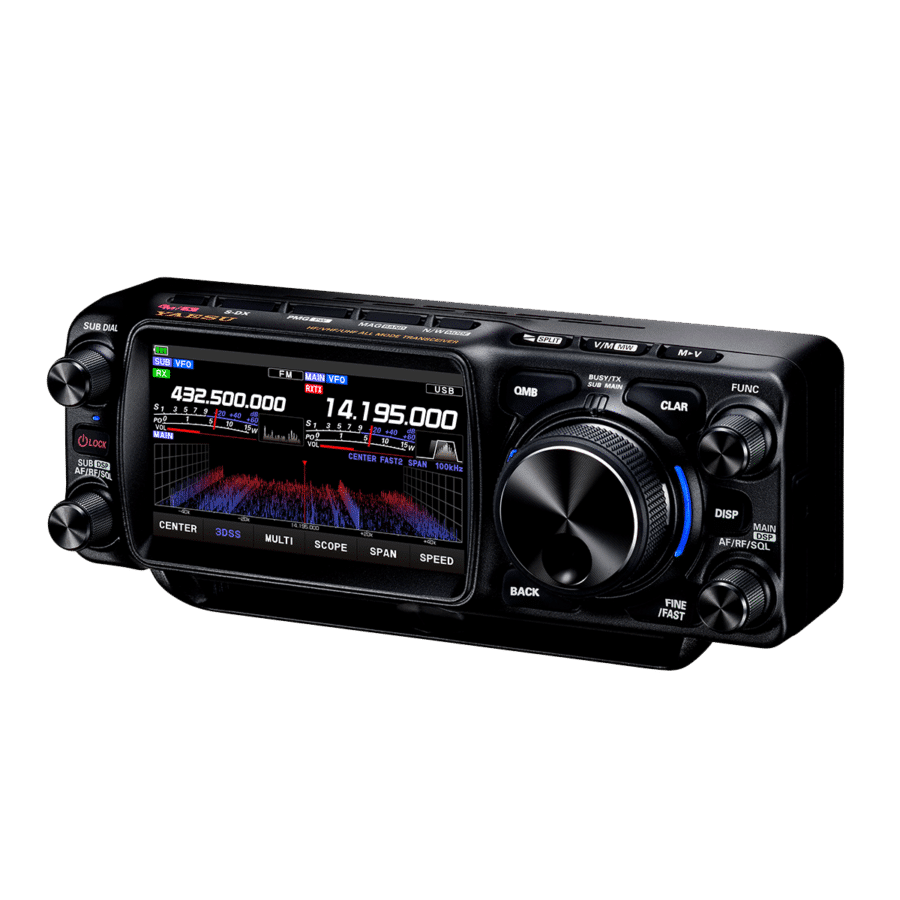

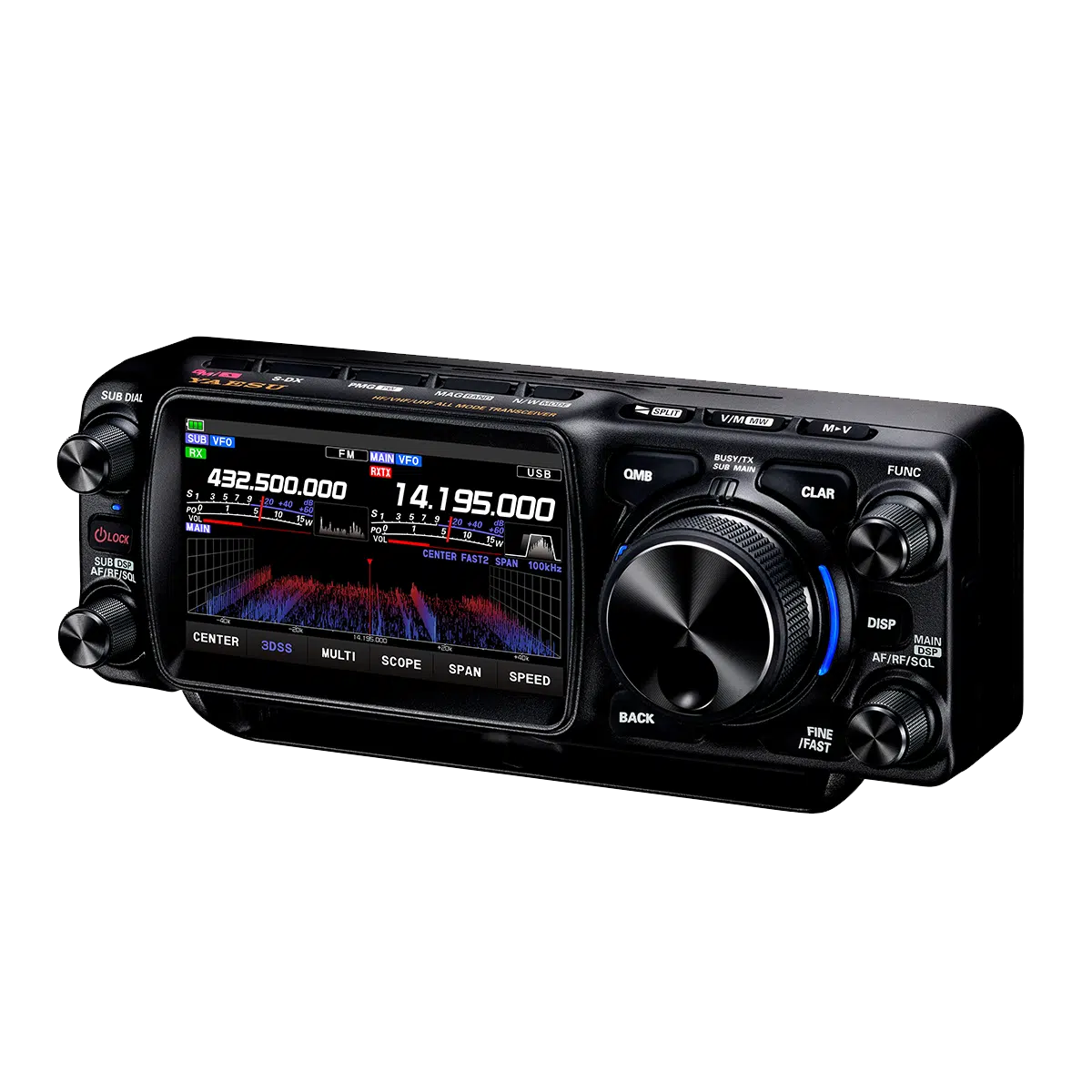

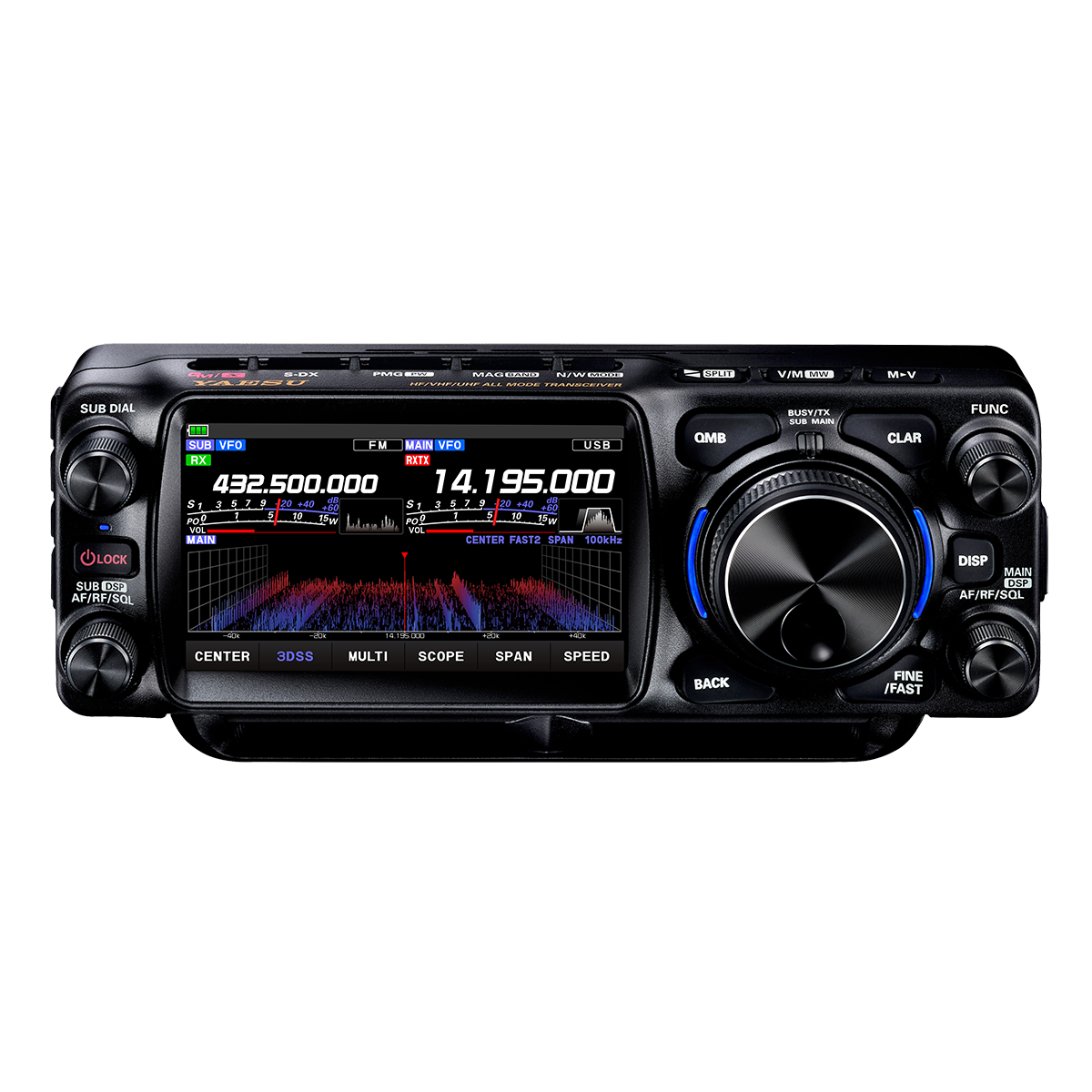

HF/50/144/430 MHz All Mode Wide-Coverage SDR Transceiver, 10W.
The FTX-1 provides continuous wide-range receiver coverage from 30 kHz through 174 MHz and from 400 MHz through 470 MHz including SWL, FM broadcast and Air-band.
1.398,00€ with VAT
Expected delivery: 16-10-2026
HF/50/144/430 MHz All Mode Wide-Coverage SDR Transceiver, 10W.
The FTX-1 provides continuous wide-range receiver coverage from 30 kHz through 174 MHz and from 400 MHz through 470 MHz including SWL, FM broadcast and Air-band.
FTX-1 Field and FTX-1 Optima share the “Field Head” – a field compact transceiver – 213 x 89 x 55 mm (W x H x D).
FTX-1 Field is supplied with a 6400 mAh large capacity Li-ion battery – SBR-52LI for field operation.
By attaching the SBR-52LI to the rear of the Field Head, the FTX-1 provides 6W (5W for QRP) stand-alone operation on HF through V/UHF bands in all modes – SSB, CW, AM, FM and C4FM digital. 9-hour stand-alone operating time with 6W on HF bands (SSB), and 8-hour operating time with 6W on V/UHF bands (FM) are available (6-6-48 duty cycle). The SBR-52LI is rechargeable separately with a third-party’s USB Type-C cable (45W or greater/15V 2A).
When using an external 13.8V DC power supply, up to 10W of power output is available, and the Field Head charges the SBR-52LI automatically.
5-year industry leading warranty.
Country of Origin: Japan.
The company is a distributor of two-way radios communications equipment and accessories – hand-held, mobile and base two-way radios, digital and analog radios; marine and air-band radios, license-free radios, amateur radios, receivers, cables, power-supply units, antennas, microphones, mounts; specialist police equipment.
– Frequency range: 1.8-450 MHz (amateur bands only), 70-70.5 MHz (UK amateur bands only) Tx, 30 kHz-174 MHz, 400-470 MHz Rx
– Modes: USB/LSB/CW/AM//FM/C4FM
– Frequency steps: 1*/5/10/20 Hz (CW/SSB/AM), 5/10/20 Hz (FM) * FINE tuning ON
– Number of channels: 1104
– Quick memory bank (QMB)
– Output power:
@ SBR-52Li 0.5-6W (AM Carrier 0.05-1.5W)
@ 13.8V DC EXT DC 0.5-10W (AM Carrier 0.05-2.5W)
– Operating temperature range: -10 to +50 C
– High-resolution 4.3” color TFT touchscreen display, 3DSS, Waterfall
– DCS/CTCSS tones (FM mode)
– VOX
– TOT (TX Time-out timer)
– APO (Automatic power-off)
– AGC function (Automatic Gain Control)
– DSP
– Shift/Width/Notch/Contour
– Noise Blanker
– Built-in electronic CW keyer
– MicroSD card slot
– Dimensions (H x W x D): Field 89 x 213 x 55 mm
– Microphone SSM-75E
– DC power cable
– Battery pack SBR-52Li (Li-Ion 10.8V 6400 mAh)
