USB interface unit for CAT control and digital modes including SSTV, RTTY and PSK. Provides USB audio, PTT/FSK control, CAT/RS-232C interfacing and separate TX/RX audio-level controls.
Expected delivery: 04-10-2026
YAESU SCU-17 is a USB interface unit for connecting a compatible transceiver to a computer. It enables CAT control and operation with digital modes such as SSTV, RTTY and PSK over a USB connection.

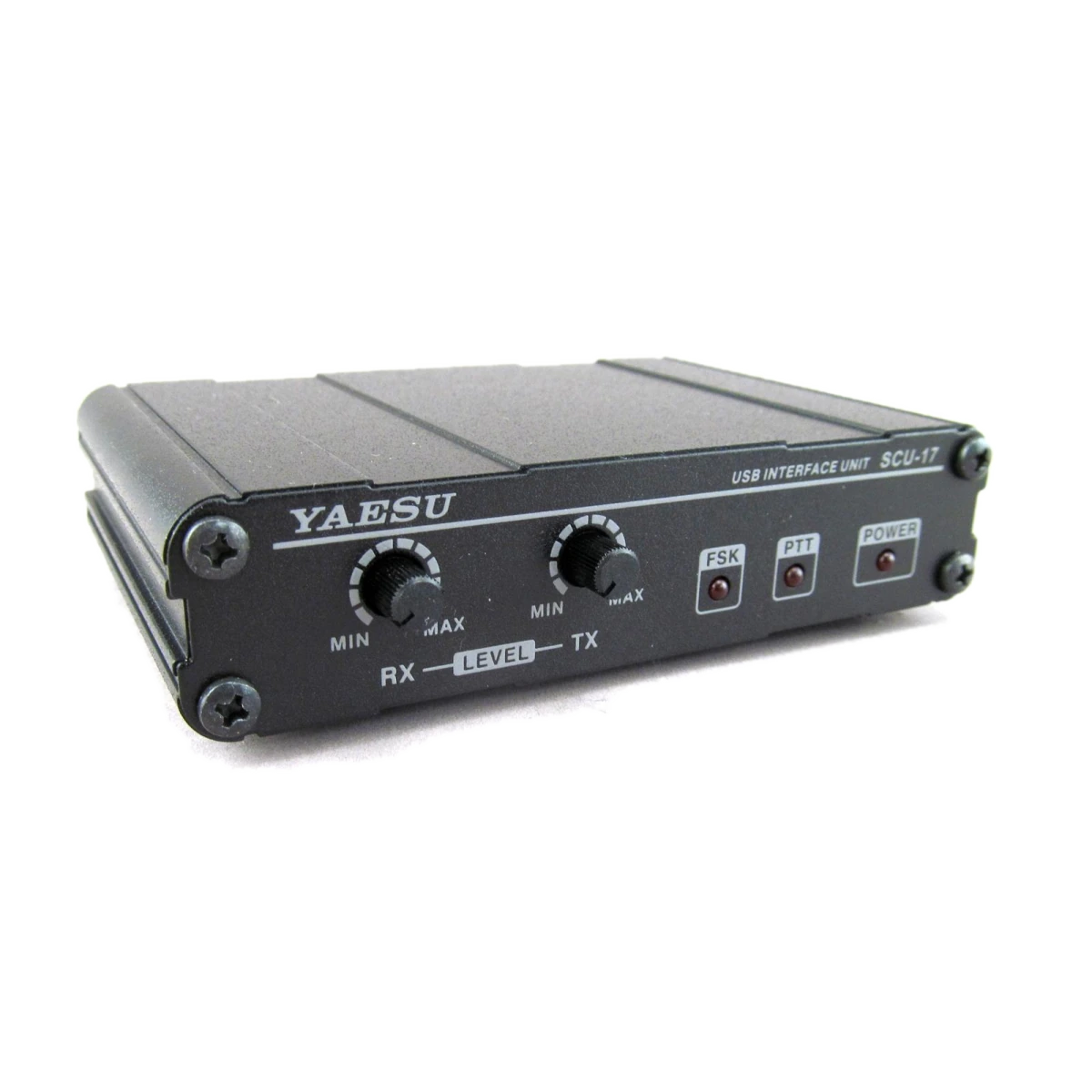

The unit provides separate receive and transmit audio-level controls, PTT and FSK status LEDs and USB Audio Codec support. It is powered directly from the USB bus.
The company imports, installs and supports radio-communication and internal company-security systems. Integra-A is a distributor of radio-communication equipment and accessories.
– Official name: SCU-17 USB Interface Unit
– Supply voltage: 5.0 V DC ±5% from USB
– Current consumption: 130 mA
– USB: USB 1.1 or USB 2.0, bus powered
– CAT/RS-232C: RS-232C voltage level
– DATA-IN: 100 mVrms at 10 kΩ
– DATA-OUT: 100 mVrms at 600 Ω
– AUDIO-IN/OUT: 100 mVrms at 600 Ω
– Dimensions: 111 x 25.4 x 74 mm
– Weight: approximately 230 g

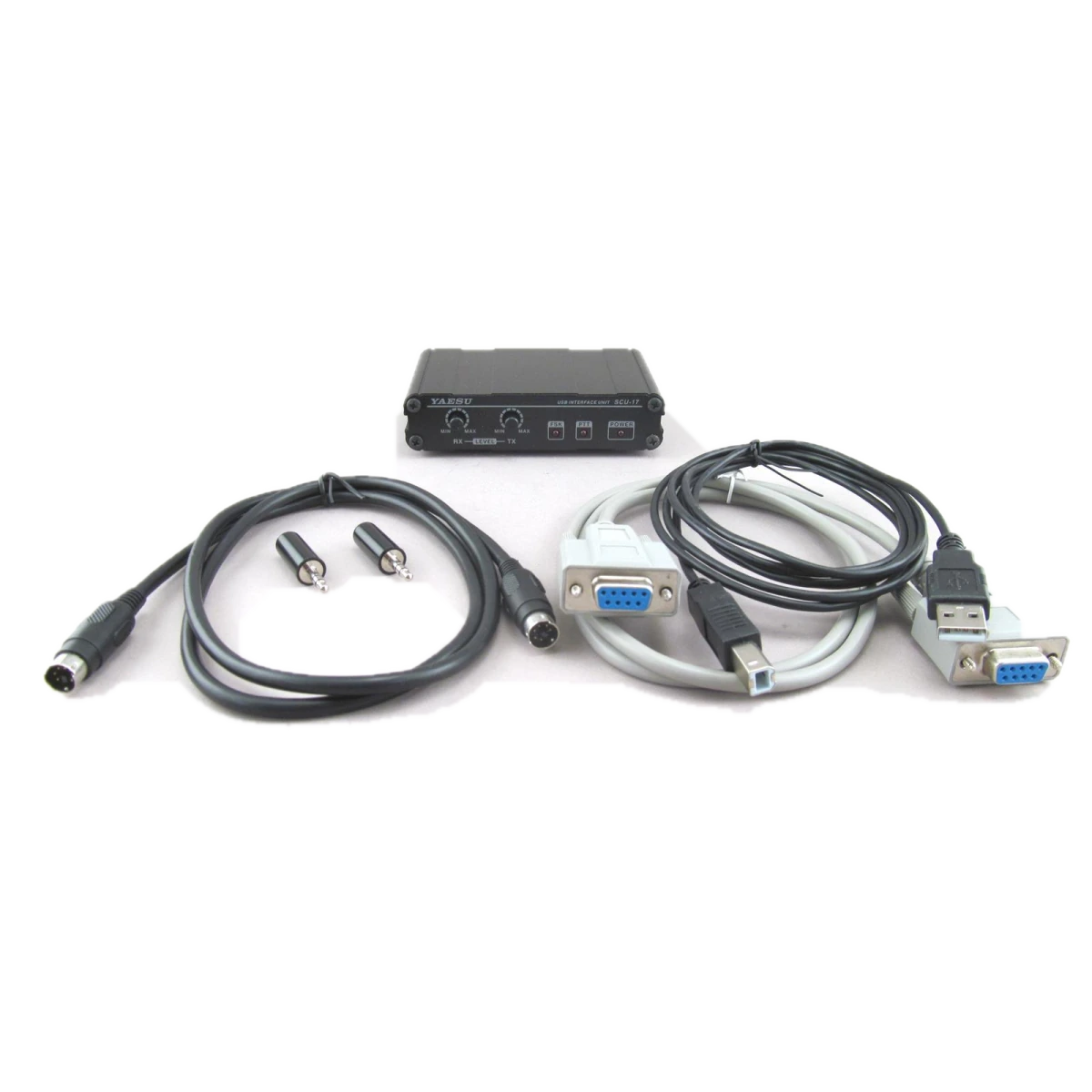

– USB Type-A to Type-B cable
– straight female-to-female RS-232C cable
– MDIN6P–MDIN6P connection cable
– 2 x 3.5 mm stereo plugs
